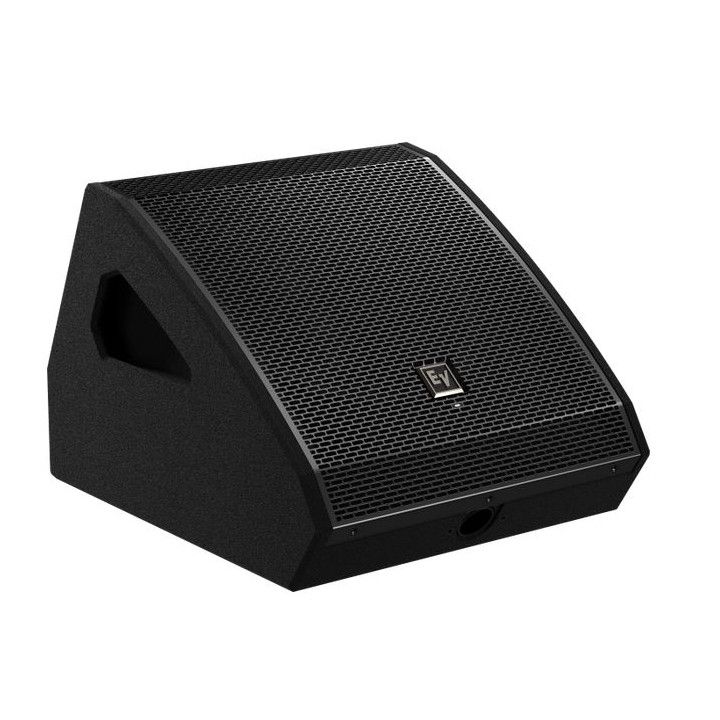

12” powered coaxial multi functional Monitor, QuickSmartDSP with 3-band EQ, feedback filter and presets, 700W Class-D amplifier powered by Dynacord, black
12” powered coaxial multi functional Monitor, QuickSmartDSP with 3-band EQ, feedback filter and presets, 700W Class-D amplifier powered by Dynacord, black
| Physical specs | |
|---|---|
| Width | 414 mm |
| Depth | 484 mm |
| Height | 339 mm |
| Housing material | 15 mm birch plywood, Heavy duty structured lacquer |
| Colour | Black |
| Weight | 14.9 Kg |
| Audio specs | |
| Power | Low amplifier power 360 W IHF-A/260 W RMS, Mid-high amplifier power 160 W IHF-A/75 W RMS |
| Coverage (Horz. x Vert.) | 90° x 90° |
| Max. sound pressure level | 128 dB |
| Frequency range | 50-20,000 Hz (-10dB) |

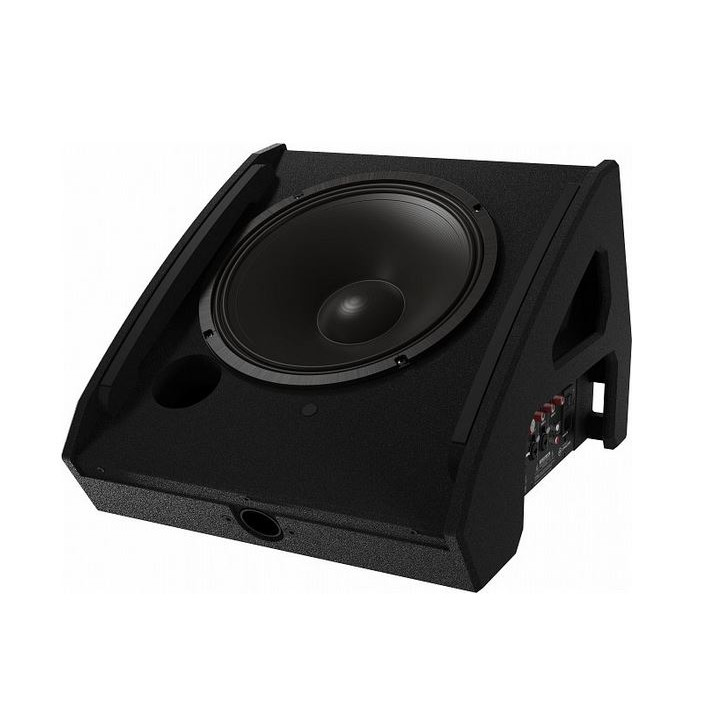

| Transducers | DCX 12300, 12-inch/1.75-inch 2-way coaxial transducer with lightweight neodymium compression driver |
| Crossover frequency | 1.5 kHz |
| Connections | |

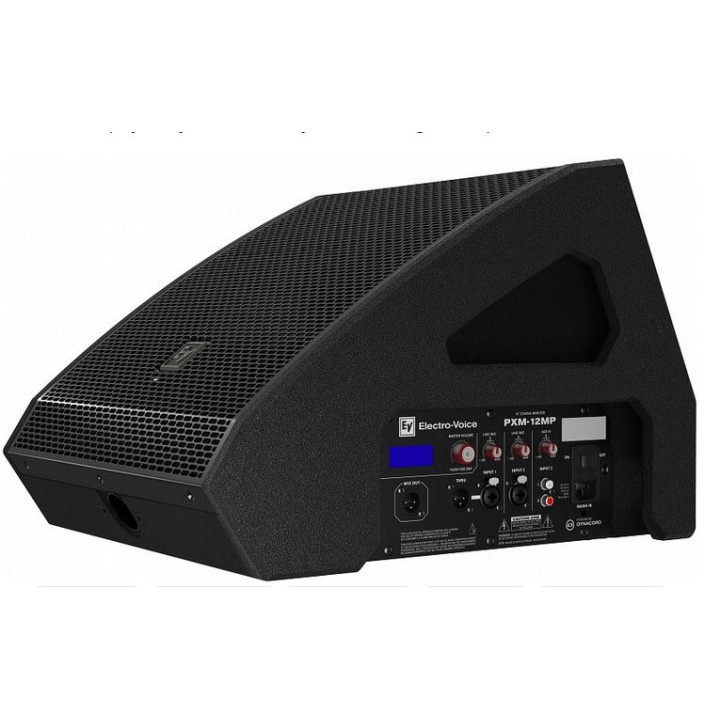

| Signal connectors | Inputs 2 x Mono XLR/Jack socket (MIC/LINE), switchable phantom power (+15 V), 1 x Stereo RCA (AUX IN). Outputs 1 x XLR THRU (parallel to MIC/LINE 1), 1 x XLR MIX OUT |
| Power connectors | XLR |
