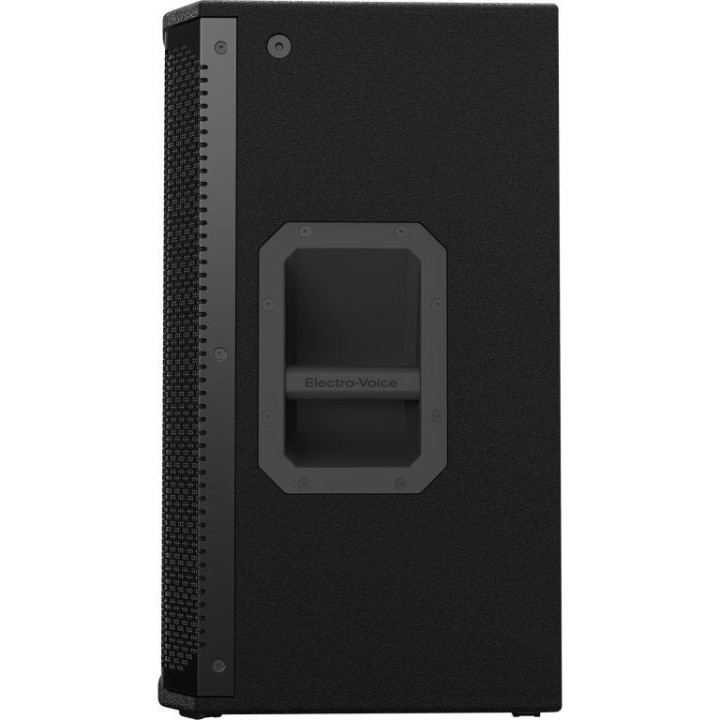

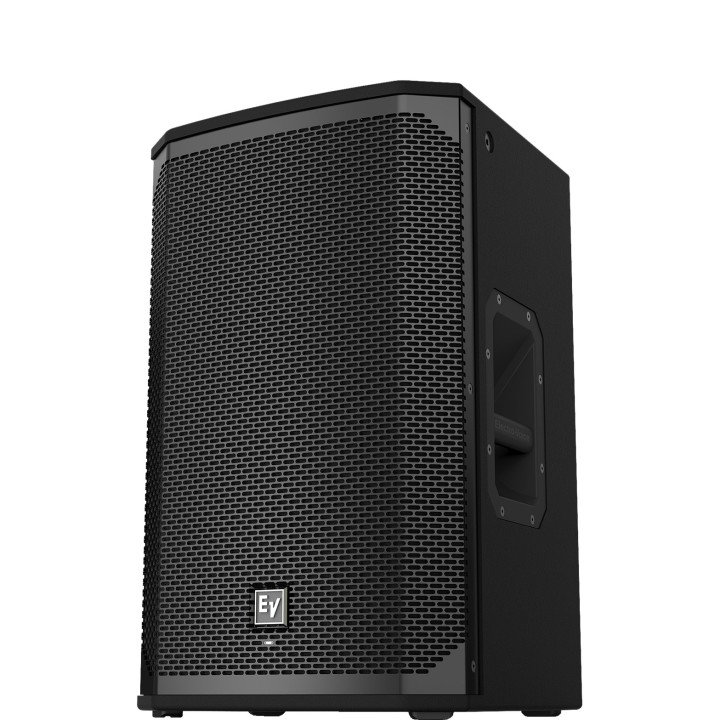

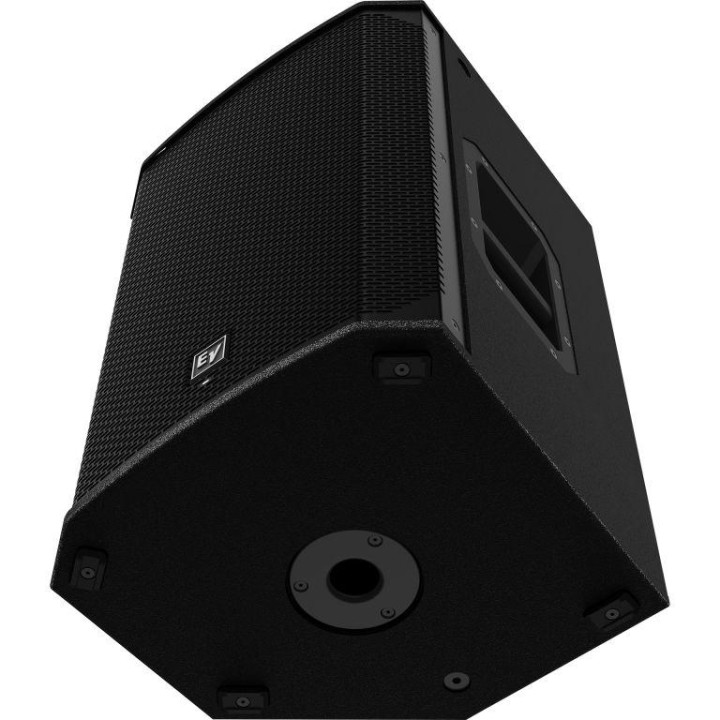

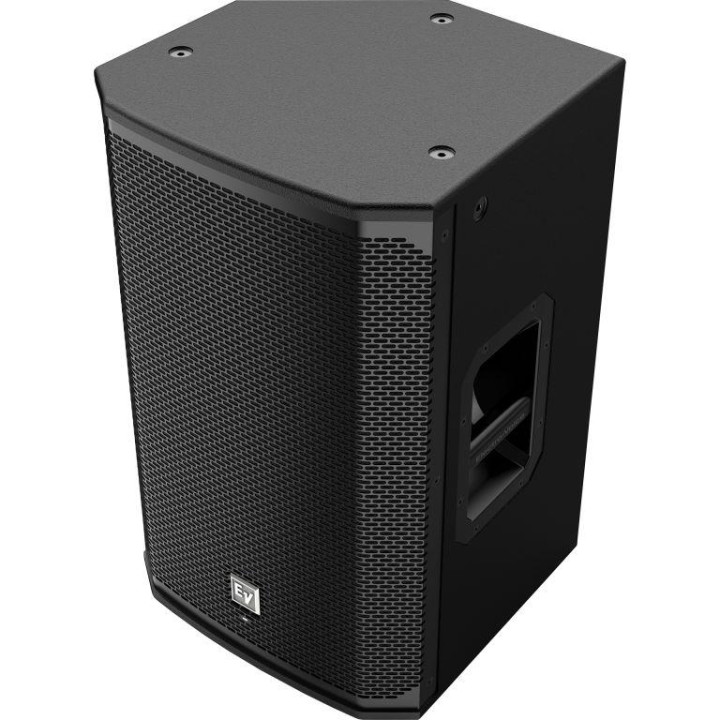

12", 8 Ohms 2-Way Fullrange speaker, 350/1400W max SPL 131db
12", 8 Ohms 2-Way Fullrange speaker, 350/1400W max SPL 131db
| Physical specs | |
|---|---|
| Width | 375 mm |
| Depth | 356 mm |
| Height | 607 mm |
| Housing material | 15 mm plywood with EVCoat |
| Colour | Melns |
| Weight | 17.4 Kg |
| Audio specs | |
| Power | 350 W continuous, 1400 W peak |
| Coverage (Horz. x Vert.) | 90° x 60° |
| Max. sound pressure level | 131 dB |
| Frequency range | 82-18,000 Hz (-3dB), 55-20,000 Hz (-10dB), Rec. High-Pass Frequency 55 Hz |
| Transducers | LF EVS-12M 300 mm (12”), HF DH-1M 1'' titanium compression driver |
| Input impedance | 8 Ω |
| Crossover frequency | 1.6 kHz |
| Connections | |
| Signal connectors | Neutrik NL4 in/thru |
