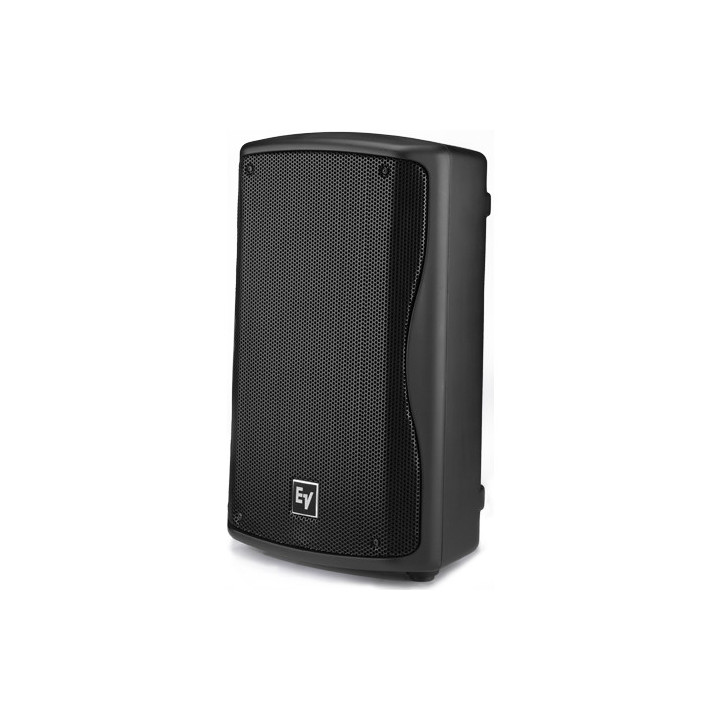

Electro-Voice Zx1-90

On order
Excl. VAT:
8" 123dB 2-Way, 200 W, 90°x50°, mobile version, built-in pole mount

8" 123dB 2-Way, 200 W, 90°x50°, mobile version, built-in pole mount

  • Brand
  • Reference
    Zx1-90

Physical specs
Width 282 mm
Depth 264 mm
Height 457 mm
Housing material High Impact Polymer
Colour Melns
Weight 8.4 kg
Audio specs
Power 200W Cont., 400W Prog., 800W Peak
Coverage (Horz. x Vert.) 90° x 50° Rotatable
Max. sound pressure level 123 dB
Frequency range 60-20,000 Hz (-3dB), 48-20,000 Hz (-10dB)
Transducers LF EV8L, 8'' (203mm), HF DH2005, 1'' (25.4mm) Exit Compression Driver
Input impedance 8 Ω
Crossover frequency 1.7 kHz
Connections
Signal connectors Neutrik Speakon NL4 in/thru
